2 RAIL CRAWL SPACE SETTING SYSTEM
36,000 lb capacity 24' to 28' wide homes
System Code: 4P-CS
Base Price: $11,154.00
Base System Includes:
-
4 Crawl Space Jack Stands (10" to 36" range)
-
4 Beam Jacking Head Plates
-
4 HJ-12.5, Norco 12.5 Ton Bottle Jacks
-
4 Cribbing Stands (18.5" to 38.5" range)
-
4 11' Aluminum Box Beams
-
4 13' Aluminum Box Beams
-
6 Box Beam Connecting Tubes w/ Pins
-
4 6 roll, 6 ton Heavy Duty Lower Rollers
-
4 Beam Dolly Guides
-
4 6 roll, 6 ton Heavy Duty 8" wide Upper Rollers
-
1 LMA, Lengthwise Movement Adjuster
-
4 BSB, Modular Building Support Beams
-
2 SW-25, 2500 lb. Brake Winches w/ 40' Straps
-
2 Box Beam Winch Brackets
Approx. System Weight: 2612 lbs.
The Lengthwise Movement Adjuster regulates end to end movement
48" tubes may be added for deeper foundations
Add 48" tubes $408
Our Deep Crawl Space Jack Stand can be swapped in if you plan to do only 48" foundations
Either option for 48" foundations will include
taller cribbing stands for inside the foundation
Beam Length Options
Recommended Beam Configurations
Home Width
24' Wide
26' Wide
28' Wide
30' Wide
32' Wide
Beam Lengths
2 BB-11'
BB-11' & BB-13'
2 BB-13'
BB-13' & BB-15'
2 BB-15'
For Setting 26' to 30' Wide Homes
2 BB-11, 4 BB-13, 2 BB-15
Add $302
For Setting 26' to 32' Wide Homes
2 BB-11, 4 BB-13, 4 BB-15
Add $1,583
For Setting 24' to 32' Wide Homes
4 BB-11, 4 BB-13, 4 BB-15
Add $2,561
optional system add-ons
Add 2 Wall Brackets
WB-6"
WB-8"
WB-10"
$194
$204
$210
-

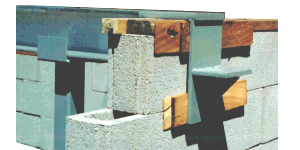

Saddle over wall to eliminate 5" of lowering
-
8" is the most popular size
Add 4 Modular Perimeter Jack Stands
Price: $1,872
Part code: PJS
-
Adjustable from 10" to 48"
-
For picking up modular homes from the perimeter to remove the carrier
Add 4 Cribbing Stands
CS-11" to 21"
CS-13.5" to 28.5"
CS-18.5" to 38.5"
CS-25.5" to 48.5"
$840
$900
$964
$1,024
-
Add to use under the beams on the outside of the foundation
-
Can be used instead of stacked wood cribbing
