Roof Jacks   (Three Types)

View Roof Jack Video

Roof Jack Lifting from Ground


Made exclusively for the
Manufactured Home Industry

Ground Setting Jack
RJ-1000G
  1000 LB Capacity
  Prices:
  One Jack $442.00
  Two Jacks $848.00 ($424 ea)
  Three Jacks $1,248.00 ($416 ea)
  Four Jacks $1,624.00 ($406 ea)
  Five Jacks $1,990.00 ($398 ea)
(Shipping not included)
Jack Weight:  95 lbs
Load Capacity per Jack:  1000 Lbs


Jacks are adjustable for setting homes with
varying pitches up to 7/12 from the ground


Lifting Heights from Ground:
Jack is adjustable from  11'6" to 18' for
setting homes with a pitch up to 5/12.

For pitches up to 7/12 an extension tube is
provided giving jack adjustment to 21'6".

RJ-1000G  Specifications:
Tubing O.D.= 3.5"    Tubing I.D.= 3.25"

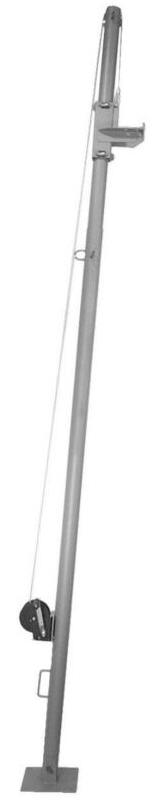

  Jack Fully Extended

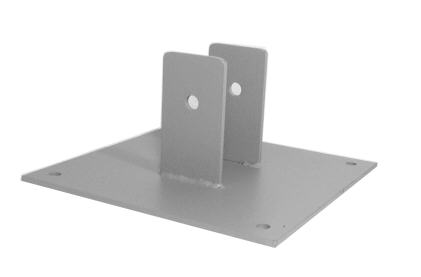

  12 x 12 Base Plate
  With Holes in Corners


Roof Jacks in Position






  1500 LB Capacity
  2-Way Brake Winch

  Roller Jacking Foot

        Roller jacking foot allows setting the home from the
    ground without having to get up on the home to
    attach any hardware, and also stabilizes the jack.

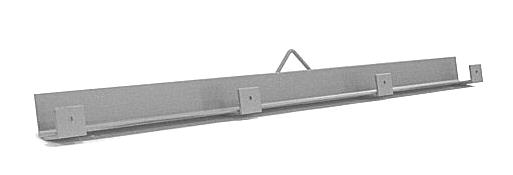

  Rope Tie Loop   4' Lifting Bracket

    4' Lifting bracket is attached when lifting a
    roof that does not create an overhang
    for the roller jacking foot to jack against.
    It may also be attached to the roof  for additional
    support when jacking with the roller foot.
  Pulley Fully Encased
  (Keeps cable in pulley groove)   4' Lifting Bracket also sold separately:  $30.00

Jacks should be spread at even   Each RJ-1000G Jack Includes:
intervals across roofline.

1)  12" x 12" Base Plate

    1)  1500 Lb, 2 Way Brake Winch w/ cable
As a general recommendation, we suggest using   1)  Steel Pulley w/ holder
three jacks for homes up to 45 ft long and   1)  4' Lifting Bracket
four jacks for homes up to 65 ft long,   1)  Roller Jacking Foot
and five jacks be used for homes longer than 65 ft.   1)  3 1/4" Inside Pole, 10' Long
    1)  3 1/2" Outside Pole, 10' Long
Please contact home manufacturer   1)  Extension Tube, 4' Long
for recommendations.



Roof Jack Lifting from Floor or Marriage Joist of Home



Floor Setting Jack


RJ-1000F This Roof Jack will set
  1000 LB Capacity   varying pitches up to 7/12
  Prices:   lifting from the floor or marriage joist
  One Jack $370.00   of one half to the other.
  Two Jacks $710.00 ($355 ea) Great for Setup over a Basement or Crawl Space
  Three Jacks $1044.00 ($348 ea)
  Four Jacks $1,360.00 ($340 ea) RJ-1000F  Specifications:
  Five Jacks $1,660.00 ($332 ea) Tubing O.D.= 3.5"    Tubing I.D.= 3.25"

  (Shipping not included)

Optional Roller Foot may be added to each jack:  $58.00

Jack Weight:  75 lbs
Load Capacity per Jack: 1000 Lbs

Lifting Heights from Floor or Marriage Joist:
Jack is adjustable from  10' to 17' for
setting homes with a pitch up to 5/12.

For pitches up to 7/12 an extension tube is
provided giving jack adjustment to 19' 6".


Each RJ-900F Jack Includes:



1)  10" x 10" Base Plate



1)  1500 Lb, 2 Way Brake Winch w/ cable



1)  Steel Pulley w/ holder



1)  3' Lifting Bracket   (4' available upon request)



1)  3 1/4" Inside Pole, 10' Long


1)  3 1/2" Outside Pole, 8' Long

1)  Extension Tube, 3 1/2' Long



1)  Optional Roller Foot




Roof Jack Lifting from the Attic of Home

  Attic Roof Jack
  RJ-1200AT   This Attic Jack is designed to lift
  1200 LB Capacity   from the attic marriage line or other
  Prices:   supported locations in the attic.
  One Jack $320.00
  Two Jacks $616.00 ($308ea) Jack is adjustable to accommodate
  Three Jacks $903.00 ($301 ea) any roof pitch up to 12/12 in attic
  Four Jacks $1,180.00 ($295 ea)
  Five Jacks $1,442.00 ($289 ea)



(Shipping not included)



Jack Weight:   67 lbs
Load Capacity per Jack: 1200 Lbs


Each RJ-1200AT Jack Includes:

1)  10" x 10" Base Plate

1)  1500 Lb, 2 Way Brake Winch w/ cable

1)  Steel Pulley w/ holder

1)  3' Lifting Bracket   (4' available upon request)



1)  Extension Tube, Extends 2 1/2'

1)  3 1/4" Outside Pole, 10' Long











New - Roof Jack Conversion Kit



















Roof Jack Conversion Kit




Price:  $85.00




Kit Includes:

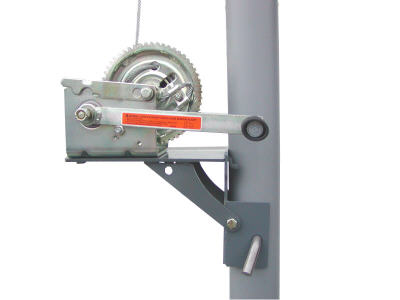

Winch Bracket & Bottom Foot Bracket


& extension tube to reach 12/12 pitches.


The Winch Bracket and Foot Bracket



may be attached to the inside tube of any roof jack.






 These brackets give our roof jacks the capability to
become a shorter, lighter jack.  This gives you the

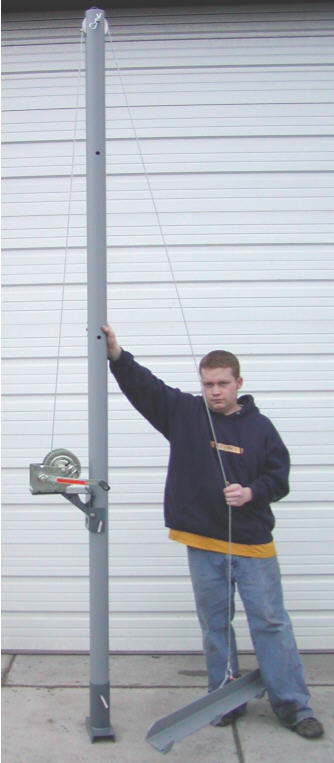

Small Jack Fully Assembled


opportunity to jack up higher roof
pitches from the attic.














Click Here for Pictures of Roof Jack Lifting from Ground
